New for 2006

New Product: Compact Sub Bass complete “M” series installations.

Quest MS Series

Quest Engineering M 210S Subwoofer

Need more bass but stuck for space?

Quest Engineering subwoofers have a great reputation for their reliability and extended low frequency response. They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. The M series models use powerful, custom manufactured drivers. Integral pole available to support one mid-high or full range loudspeaker.

Partner with the Quest QA1004 amplifier (switch-able electronic x-over) for a great sub bass solution for small venues that want real bass; heard but not seen.

Technical Specifications

Freq. Range (-10dB): 40Hz~200Hz
Freq. Response (-3dB): 48Hz~160Hz
Rec. Hi pass Frequency: 20Hz
Axial Sensitivity: 96dB(1W/1m)
Max Calculated SPL 127dB
Rated System Power: 300W Continuous 1200W Peak
LF Transducer: 2 x 10"/50mm
Nominal Impedance: 4 Ohms
Connector: 2 x NL4 Speakon
Dim (H x W x D): 400mm x 650mm x 445mm
Net Weight: 32.5Kg
Shipping Weight: 35Kg

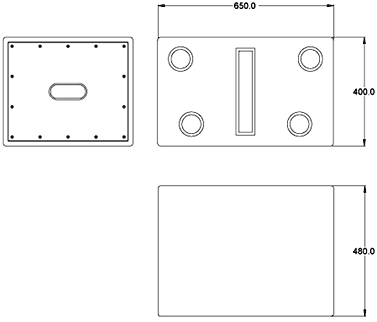

Quest Engineering M 210S Subwoofer  diagram
